ELBA

Flat terminals bolted

A 7.1 Al straight clamps for Al, Cu bolt and Al, Cu strip

Type	U [kV]	D [mm]	Strip/Kind	Strip/h × t [mm]	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d [mm]	h [mm]	t [mm]	Weight [kg]
352351	110	Cu 30	Al	32 - 50 × 5	AC	A	161	52	75	M10	65	17	0.93
352381	110	Cu 30	Al	80 × 10	AC	A	162	83	80	M10	65	11	0.95
352381.1	110	Cu 36	Al	80 × 10	AC	A	162	83	80	M10	65	11	0.89
352381.3	110	Al 30	Cu	63 × 10	AC	A	162	63	80	M10	65	11	0.95
352381.4	110	Cu 30	Cu	60 × 10	AC	A	162	63	80	M10	65	11	0.95
352381.5	110	Cu 30	Al	60 × 10	AC	A	200	63	115	M10	65	11	1.05
352381.6	110	Cu 26	Al	63 × 10	AC	A	162	63	80	M10	65	11	0.95
352381.7	110	Al 30	Al	63 x 10	A	A	162	63	80	M10	65	11	0.95
352381.8	110	Al 30	Al	80 x 10	A	A	162	83	80	M10	65	11	0,90
352381.9	110	Al 36	Al	80 × 10	A	A	162	83	80	M10	65	11	0.87
352382	110	Cu 30	Al	80 × 10	AC	A	234	83	130	M10	65	11	1.1
352383	110	Cu 20	Al	80 × 10	AC	A	162	83	80	M10	65	11	0.95
352401	110	Cu 40	Al	100 × 10	AC	A	203	102	100	M10	75	18	1.72
352401.3	110	Cu 30	Al	100 x10	AC	A	203	102	100	M10	75	18	1.72
352481	110	Cu 40	Al	80 × 10	AC	A	184	82	80	M10	75	21	1.59
352481.1	110	Cu 40	Al	63 x 10	AC	A	184	63	80	M10	75	21	1.42



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized

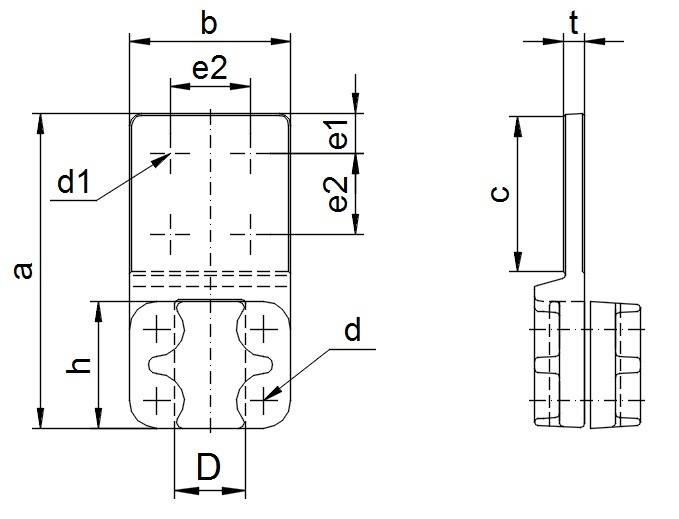

A 7.1 Prístrojové svorky Al pre Al, Cu svorník a Al, Cu pás priamo

Type	U [kV]	D [mm]	Príruba	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d [mm]	d1 [mm]	e1 [mm]	e2 [mm]	h [mm]	t [mm]	Weight [kg]
352401.4	110	Cu 30	Cu 100 x 100	AC	A	203	102	100	M10	14	25	50	75	18	1.72
352401.5	110	Cu 30	Cu 100 x 100	AC	A	203	102	100	M10	2x14 / 2x17	25	50	75	18	1.72



Materiál svorky

A - Al zliatina, C - Meď E-Cu, AC - Al zliatina s vrstvou CuSn 10

Spojovací materiál

A - Anticorový, FH - Ocel žiarovo pozinkovaná





A 7.1 Prístrojové svorky Al pre Al, Cu svorník a Al, Cu pás priamo

Type	U [kV]	D [mm]	Strip/Kind	Strip/h × t [mm]	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d [mm]	h [mm]	t [mm]	Weight [kg]
352385	110	Al 30	Al	63 x 10	A	A	242	65	100	M10	120	12	1.5



Materiál svorky

A - Al zliatina, C - Meď E-Cu, AC - Al zliatina s vrstvou CuSn 10

Spojovací materiál

A - Anticorový, FH - Ocel žiarovo pozinkovaná

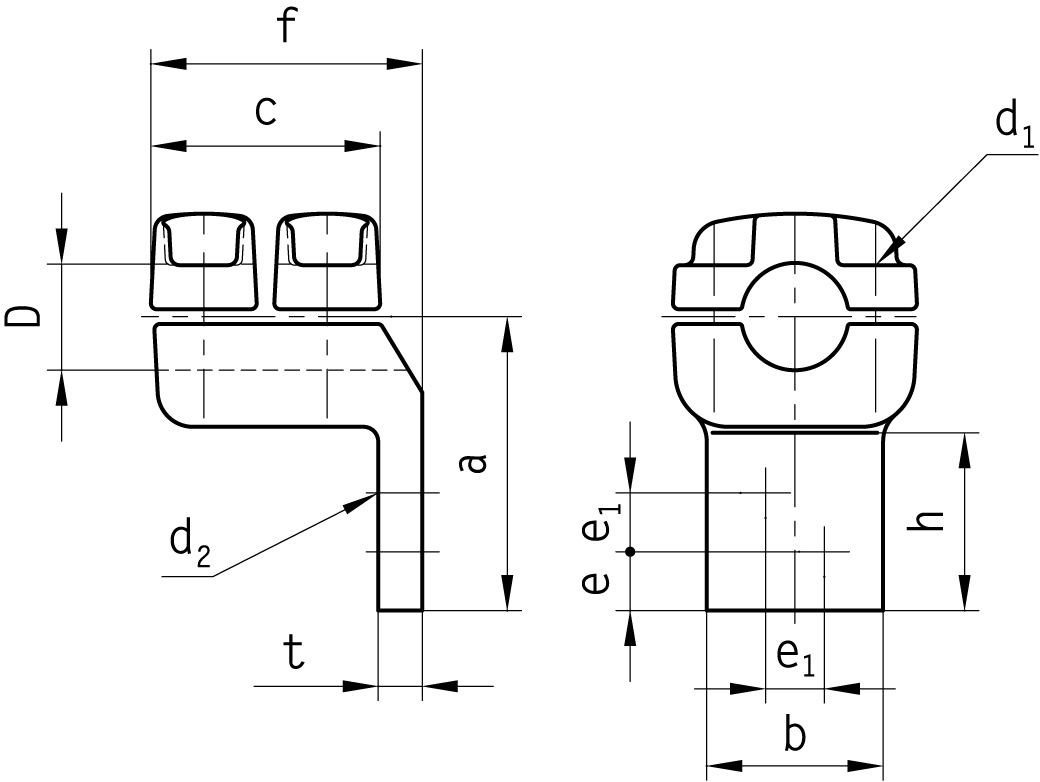

A 7.2 Al straight clamps for Al, Cu bolt and Al strip 45°, 90°

Type	U [kV]	D1 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	e [mm]	e1 [mm]	f [mm]	h [mm]	t [mm]	Weight [kg]
321018	400	Cu 30	2	AC	A	145	60	92	M10	-	-	-	120	100	15	1.90
321019	400	Cu 30	2	AC	A	145	60	92	M10	-	-	-	120	101	15	1.1
321019.2	400	Al 30	2	A	A	145	60	92	M10	-	-	-	120	101	15	1.1
414138	400	Al 36	2	AC	A	100	60	92	M10	17	20	-	120	60	15	1.1
414138.1	400	Cu 36	2	AC	A	100	60	92	M10	14	20	20	120	60	15	1.75
414138.2	400	Al 30	2	AC	A	100	60	92	M10	11	20	-	120	60	15	1.1
414138.4	400	Al 30	2	AC	A	145	60	92	M10	14	30	30	120	100	15	1.75
414138.5	400	Cu 40	2	AC	A	100	60	92	M10	14	20	20	120	60	15	1.7



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 7.2 Al straight clamps for Al, Cu bolt and Al strip 45°, 90°

Type	U [kV]	D1 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	e [mm]	e1 [mm]	f [mm]	h [mm]	t [mm]	Weight [kg]
321019.3	170	Al 15	2	A	A	145	60	78	M10	18	40	20	110	101	15	1.15



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 7.2 Al straight clamps for Al, Cu bolt and Al strip 45°, 90°

Type	U [kV]	D1 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	f [mm]	h [mm]	t [mm]	Weight [kg]
350030	170	Cu 30	2	AC	A	89	80	78	M10	158	80	12	0.95



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 7.2 Prístrojové svorky Al pre Al, Cu svorník a Al pás 45°, 90°

Type	U [kV]	D1 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	e [mm]	e1 [mm]	f [mm]	h [mm]	t [mm]	Weight [kg]
414254	170	Al 50	2	A	A	155	100	108	M12	13.5	28	44.5	135	100	15	2.1



Materiál svorky

A - Al zliatina, AC - Al zliatina s vrstvou CuSn 10

Spojovací materiál

A - Anticorový, FH - Ocel žiarovo pozinkovaná





A 7.3 Bolting eyes of transformer bushings for high voltage up to 52 kV

Type	In [A]	D1 [mm]	Clamp Material	Jointing Material	Surface Protection	a [mm]	b [mm]	d1 [mm]	d2 [mm]	e1 [mm]	h [mm]	t [mm]	t1 [mm]	Weight [kg]
311302*	160	M12	MS	FH	MS	45	40	M10	M12	16	75	8	7	0.65
311302.1	160	M12	MS	FH	CuG	45	40	M10	M12	16	75	8	7	0.65
311303*	160	M12	MS	FH	MS	45	40	M10	M16	16	75	8	7	0.7
311304*	400	M16	MS	FH	MS	45	40	M10	M16	16	75	8	7	0.65
311305*	400	M16	MS	FH	MS	45	40	M10	M16	16	75	8	17	0.67
311305.2	400	M16	MS	FH	MS	45	40	M10	M16	16	75	8	17	0.65
311306*	630	M20	MS	FH	MS	45	40	M10	M16	21	75	8	22	0.65
311306.1	630	M20	MS	FH	CuG	45	40	M10	M16	21	75	8	22	0.65



Clamp material

Copper E-Cu

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized

Surface treatment

MS - Pickled + cupal insert, CuG - Electrogalvanized + chromate surface coating

Note

Cupal insert





A 7.3 Bolting eyes of transformer bushings for high voltage up to 52 kV

Type	In [A]	D1 [mm]	Clamp Material	Jointing Material	Surface Protection	a [mm]	b [mm]	d1 [mm]	d2 [mm]	e1 [mm]	h [mm]	t [mm]	t1 [mm]	Weight [kg]
311332*	400	M12	MS	FH	MS	45	40	M10	M12	21	75	8	7	0.7
311332.1	400	M12	MS	FH	CuG	45	40	M10	M12	21	75	8	7	0.7
311341*	400	M16	MS	FH	MS	45	40	M10	M16	21	75	8	7	0.7
311341.1	400	M16	MS	FH	CuG	45	40	M10	M16	21	75	8	7	0.68
311342*	400	M16	MS	FH	MS	45	40	M10	M16	21	75	8	11	0.72
311342.1	400	M16	MS	FH	CuG	45	40	M10	M16	21	75	8	10	0.7
311351*	630	M20	MS	FH	MS	45	40	M10	M16	21	75	8	10	0.75
311351.1	630	M20	MS	FH	CuG	45	40	M10	M16	21	75	8	10	0.75



Clamp material

Copper E-Cu

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized

Surface treatment

MS - Pickled + cupal insert, CuG - Electrogalvanized + chromate surface coating

Note

Cupal insert





A 7.4 Bolting eyes of transformer bushings for high voltage up to 52 kV

Type	In [A]	D1 [mm]	Jointing Material	Surface Protection	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	e1 [mm]	e2 [mm]	h [mm]	t [mm]	t1 [mm]	Weight [kg]
311360	1000	M30×2	FH	MS	60	60	60	M10	M16	17.5	25	130	10	10	1.5
311360.1	1000	M30x3.5	FH	MS	60	60	60	M10	M16	17.5	25	130	10	10	1.5
311360.2	1000	M30×1.5	FH	MS	60	60	60	M10	M16	17.5	25	130	10	10	1.5
311360.4	1000	M30x2	FH	MS	60	60	60	M10	-	-	-	130	10	10	1.19
311362	630	M20×2.5	FH	MS	60	60	60	M10	M16	17.5	25	130	10	10	1.55
311364	1000	M30×2	FH	MS	60	60	60	M10	17	17.5	25	130	10	10	1.55



Clamp material

Copper E-Cu

Jointing material

FH - Steel hot dip galvanized

Surface treatment

MS - Pickled + cupal insert





A 7.4 Bolting eyes of transformer bushings for high voltage up to 52 kV

Type	In [A]	D1 [mm]	Jointing Material	Surface Protection	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	e1 [mm]	e2 [mm]	h [mm]	t [mm]	t1 [mm]	Weight [kg]
311361	630	M20×2.5	FH	MS	60	60	60	M10	M12	17.5	25	130	10	10	1.6
311366	630	M16	FH	MS	60	60	60	M10	M12	15	30	130	10	10	1.68
311367	400	M12	FH	MS	60	60	60	M10	M12	15	30	130	10	10	1.68



Clamp material

Copper E-Cu

Jointing material

FH - Steel hot dip galvanized

Surface treatment

MS - Pickled + cupal insert
