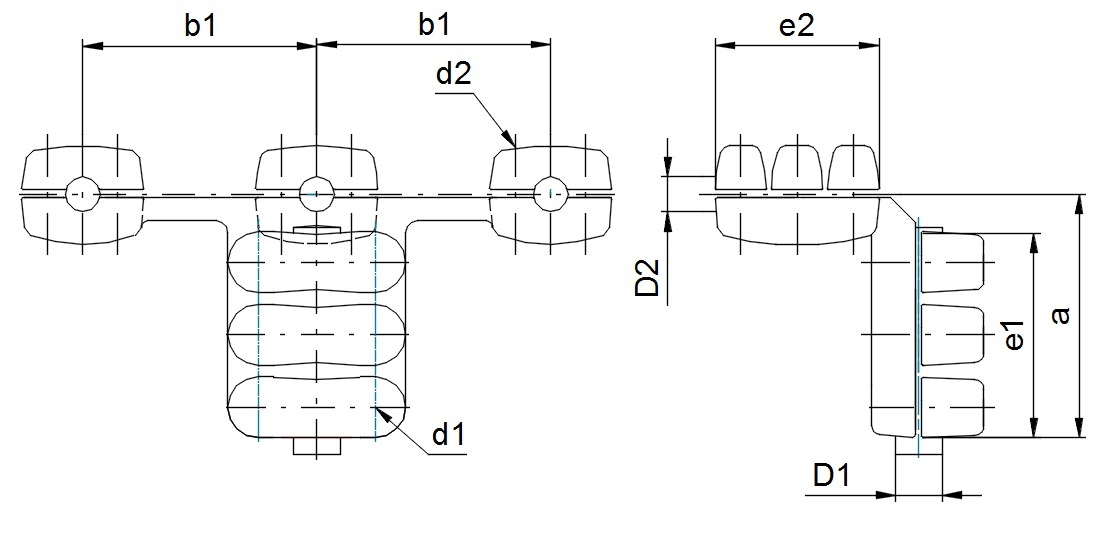

90° Clamps straight bolted and compressioned

Type U [kV] D1 [mm] D2 [mm] Caps Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] Weight [kg]
300125.1 170 Cu 40 26.0 - 27.0 2/3 AC A 97 120 78 M10 M10 2.9
300333.1 170 Cu 30 26.0 - 27.0 2/3 AC A 97 120 78 M10 M10 3.25
322322 110 Cu 25 24.0 - 25.0 2/3 AC FH 97 120 78 M10 M10 8.75
322323 110 Cu 30 26.6 2/3 AC FH 97 120 78 M10 M10 2.9
322323.1 170 Al 30 26.39 - 26.8 2/3 A A 97 120 78 M10 M10 3.65
322323.2 170 Fe 30 26.39 - 26.8 2/3 A A 97 120 78 M10 M10 3.65
322323.4 170 Cu 30 22.5 2/3 AC A 97 120 78 M10 M10 3.2
322323.6 170 Cu 30 21.9 2/3 AC A 97 120 78 M10 M10 3.2
322323.7 170 Cu 30 30.6 2/3 AC A 97 120 78 M10 M10 3.2
322323.9 170 Al 30 21.9 2/3 A A 97 120 78 M10 M10 3.2
322323.10 170 Cu 30 Cu 17.5 2/3 AC A 97 120 78 M10 M10 3.22
322323.12 170 Cu 30 Cu 25.0-26.6 2/3 AC A 97 120 78 M10 M10 3.2
322323.21 170 Cu 40 35.8 - 36.5 2/3 AC A 97 120 78 M10 M10 3.9
322323.22 170 Al 30 35.8 - 36.5 2/3 A A 97 120 78 M10 M10 3.95
322336.1 245 Cu 36 26.39 - 26.8 2/3 AC A 97 120 78 M10 M10 2.66
322336.2 245 Cu 36 35.8 - 36.5 2/3 AC A 97 120 78 M10 M10 2.45
322337 170 Al 20 35.8 - 36.5 2/3 A A 97 120 78 M10 M10 3.5
322422.1 110 Cu 40 21.9 2/3 AC A 97 120 78 M10 M10 2.5
322422.3 110 Cu 40 26.4 2/3 AC A 86 120 78 M10 M10 2.5
322424 400 Cu 50 21.9 2/3 AC A 180 70 54 M12 M10 4.4
322424.9 400 Cu 50-53 Cu 30.0 2/3 AC A 180 70 54 M12 M10 4.2
406805 420 Al 30 29.0 2/3 A A 86 118 78 M10 M10 2.2
406810.1 170 Al 30 26.0 2/3 A A 86 120 78 M10 M10 2.3
406835.1 170 Al 30 36.9 3/3 A A 150 120 120 M10 M10 4.65
406838 245 Cu 40 29.1 3/3 AC A 150 120 120 M10 M10 4.55
406838.3 245 Cu 40 Cu 17.5 3/3 AC A 150 120 120 M10 M10 4.75
406838.5 245 Al 30 Cu 22.5-23.5 3/3 AC A 150 120 120 M10 M10 4.75
406839 245 Cu 30 32.6 3/3 AC A 150 120 120 M10 M10 4.75
406839.1 400 Cu 30 29.1 3/3 AC A 150 120 120 M10 M10 4.7



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Caps Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] Weight [kg]
406836 170 Cu 30 26.5 3/3 AC A 150 120 120 M10 M10 3.95
406837 170 Al 30 26.5 3/3 A A 150 120 120 M10 M10 3.9
406842 245 Al 30 22.5 3/3 A A 150 120 120 M10 M10 4.75
406845.1 170 Al 40 36.9 3/3 A A 150 120 120 M10 M10 4.4
406846.1 170 Al 40 26.0 2/3 A A 97 120 78 M10 M10 2.4
406847.1 245 Cu 36 35.8 - 36.5 3/3 AC A 150 120 120 M10 M10 4.5
406847.3 245 Cu 36 36.0 3/3 AC A 150 120 120 M10 M10 4.5
406847.4 400 Cu 42 35.8 - 36.5 3/3 AC A 150 120 120 M10 M10 4.5
406847.5 400 Cu 40 40.0 3/3 AC A 150 120 120 M10 M10 4.5
406848 245 Cu 36 35.8 - 36.5 2/3 AC A 105 118 78 M10 M10 2.7



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] D3 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] f [mm] Weight [kg]
321020 170 Cu 50 35.8 - 36.5 - AC FH 170 112 112 M12 M12 200 312 5.45
321020.2 400 Cu 60 35.8 - 36.5 - AC A 170 92 112 M12 M10 200 305 6.5
321020.3 400 Al 50 35.8 - 36.5 - A A 170 92 112 M12 M10 200 305 6.6
321020.4 400 Al 60 35.8 - 36.5 - A A 170 92 112 M12 M10 200 305 6.5
321020.7 400 Cu 50 35.8 - 36.5 - AC A 170 92 118 M12 M10 200 305 6.45
321020.8 400 Cu 50 35.8 - 36.5 26.4 -26.8 AC A 170 92 118 M12 M10 200 305 6.57
321027 170 Cu 50 44.0 - AC A 170 112 112 M12 M12 200 312 5.23
321028 170 Cu 40 35.8 - 36.5 - AC A 170 112 112 M12 M12 200 312 5.25
321029 170 Cu 36 26.4 - 26.8 - AC  A 170 112 112 M12 M12 200 312 5.3



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] Weight [kg]
324012 400 Al 40 34.0 A A 185 118 118 M10 M10 110 5.7
324012.1 400 Cu 40 38.2 AC A 185 118 118 M10 M10 110 5.7
324012.2 220 Cu 48 21.3 - 21.7 AC A 185 118 118 M10 M10 110 5.7
324012.4 380 Al 48 21.3 - 22.0 A A 185 120 118 M10 M10 110 5.7
324016 170 Al 40 36.9 A A 185 118 118 M10 M10 100 5.6
324021.1 170 Cu 36 26.4 - 26.8 AC A 185 120 118 M10 M10 100 6.85
324021.2 170 Cu 36 35.8 - 36.5 AC A 185 120 118 M10 M10 100 6.69
324021.3 170 Cu 60 35.8 - 36.5 AC A 195 118 118 M10 M10 100 6.96
324022.1 400 Cu 30 35.8 - 36.5 AC A 185 120 118 M10 M10 100 7.0
324023 170 Cu 36 35.8 - 36.5 AC A 185 120 80 M10 M10 100 4.3



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] Weight [kg]
324020 240 Cu 40 26.4 - 26.8 AC A 127 118 78 M10 M10 50 4.3
324020.2 240 Al 30 26.4 - 26.8 A A 127 118 78 M10 M10 50 4.45



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] Weight [kg]
408824 170 Al 40 19.0 - 20.5 A A 170 118 118 M10 M10 100 4.2
408828 400 Cu 40 35.8 - 36.5 AC A 190 118 118 M10 M10 100 6.3
408828.1 400 Cu 42 35.8 - 36.5 AC A 190 118 140 M10 M10 100 6.3
408828.2 400 Al 30 26.4 - 27.0 A A 190 118 140 M10 M10 100 6.4
408828.5 400 Al 50 35.8 - 36.5 A A 190 118 140 M10 M10 100 7.8
408828.7 400 Cu 30 35.8 - 36.5 AC A 190 118 140 M10 M10 100 6.0
408828.8 400 Cu 50 35.8 - 36.5 AC A 190 118 140 M10 M10 100 7.5



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Clamp Material Jointing Material Caps a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] Weight [kg]
324222.1 420 Cu 30 35.8 - 36.5 AC A 2/3 185 140 90 M10 M10 200 6.92
324222.2 420 Cu 36 35.8 - 36.5 AC A 2/3 185 140 90 M10 M10 200 6.8
324222.3 420 Al 30 35.8 - 36.5 A A 2/3 185 140 90 M10 M10 200 6.85
324222.7 420 Al 36 35.8 - 36.5 A A 2/3 185 140 90 M10 M10 200 6.95
324222.11 420 Cu 30 21.9 AC A 2/3 185 140 90 M10 M10 200 6.95
324222.12 400 Cu 36 26.39 - 26.8 AC A 2/3 185 140 90 M10 M10 200 7.0
324222.14 400 Al 36 35.8 - 36.5 A A 2/3 185 140 90 M10 M10 200 6.95
324222.16 400 Al 40 35.8 - 36.5 A A 2/3 185 140 90 M10 M10 200 6.85
324222.18 420 Al 30 26.4 - 26.8 A A 2/3 185 140 90 M10 M10 200 7.7
324222.20 420 Al36 26.4 - 26.8 A A 3/3 185 140 140 M10 M10 200 7.62
324222.21 420 Cu 34 35.8 - 36.5 AC A 2/3 137 140 90 M10 M10 200 6.3
324222.23 420 Cu 40 35.8 - 36.5 AC A 3/3 185 140 140 M10 M10 200 7.5
324222.24 420 Al 30 28.7 - 29.7 A A 2/3 137 140 90 M10 M10 200 6.96
324245.1 420 Al 60 35.8 - 36.5 A A 2/3 206 140 120 M12 M10 200 8.65
324245.2 420 Al 50 35.8 - 36.5 A A 2/3 206 140 120 M12 M10 200 8.89



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] Weight [kg]
408968.3 400 Cu 36 35.8 - 36.5 AC A 158.5 104 109 M10 M10 140 5.05
408968.12 400 Al 60 27.0 - 28.0 AC A 158.5 104 112 M10 M10 140 4.37



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] d1 [mm] d2 [mm] e [mm] Weight [kg]
324223 230 Cu 30 21.6 AC A 150 118 118 M8 M10 100 4.6
324223.1 230 Cu 30 27.5 AC A 150 118 118 M8 M10 100 4.55
324223.2 230 Cu 30 32.4 AC A 150 118 118 M8 M10 100 4.5
324223.3 230 Cu 40 21.6 AC A 150 118 118 M8 M10 100 4.3
324223.4 230 Cu 40 27.5 AC A 150 118 118 M8 M10 100 4.2
324223.5 230 Cu 40 32.4 AC A 150 118 118 M8 M10 100 4.1
324223.7 230 Cu 40 24.5 - 25.4 AC A 185 118 118 M10 M10 100 5.9



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Caps Clamp Material Jointing Material a [mm] b [mm] d1 [mm] e1 [mm] e2 [mm] Weight [kg]
324242 400 Cu 50 35.8 - 36.5 2/3 AC A 140 400 M10 110 140 7.85
324242.1 400 Cu 30 35.8 - 36.5 2/3 AC A 117.5 400 M10 92 174 8.1
324242.2 400 Cu 36 35.8 - 36.5 2/3 AC A 117.5 400 M10 92 174 7.85
324244 400 Cu 42 35.8 - 36.5 2/3 AC A 117.5 400 M10 107.5 174 8.5
324244.1 400 Cu 42 26.4 - 27.0 2/3 AC A 117.5 400 M10 107.5 174 8.5
324244.2 400 Al 40 35.8 - 36.5 2/3 A A 117.5 400 M10 107.5 174 8.3
324245 420 Al 60 35.8 - 36.5 3/3 A A 208 400 M12 180 140 8.85
324247 400 Cu 40 28.7 - 29.7 3/3 AC A 208 400 M12 180 140 9.25
324248 420 Cu 50 35.8 - 36.5 3/3 AC A 208 400 M12 180 140 9.1



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Caps Clamp Material Jointing Material a [mm] b [mm] d1 [mm] e1 [mm] e2 [mm] Weight [kg]
412328 400 Cu 36 35.8 - 36.5 2/2 AC FH 171 400 M12 112 142 11.64
412328.1 400 Cu 40 35.8 - 36.5 2/2 AC FH 171 400 M12 112 142 11.58



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized





Type U [kV] D1 [mm] D2 [mm] Caps Clamp Material Jointing Material a [mm] b1 [mm] d1 [mm] d2 [mm] e1 [mm] e2 [mm] Weight [kg]
324254 400 Cu 36 35.8 - 36.5 3/3 AC A 185 110 M10 M10 140 140 9.38
324255 400 Cu 40 35.8 - 36.5 2/3 AC A 137.5 200 M10 M10 114 174 10.2
324256 400 Cu60 35.8 - 36.5 2/3 AC A 160 200 M10 M10 125 174 11.0



Materiál svorky
A - Al zliatina, C - Meď E-Cu, AC - Al zliatina s vrstvou CuSn 10
Spojovací materiál
A - Anticorový, FH - Ocel žiarovo pozinkovaná





Type U [kV] Identity number D1 [mm] D2 [mm] Clamp Material Jointing Material a [mm] b [mm] c [mm] c1 [mm] c2 [mm] Weight [kg]
361215.1 400 36 AlFe Cu 30 16.9 - 16.96 AC A 110.5 80 36 23 17 1.8
361216 400 36 AlFe Cu 30 17.5 AC A 110.5 80 36 23 21 1.8
361219.1 400 36 AlFe Cu 30 18.7 - 19.7 AC A 110.5 80 36 23 20 1.78
361219.2 400 36 AlFe Al 30 19.08 A FH 110.5 80 36 20 - 1.8
361236 400 45 AlFe Cu 30 25.4 - 26.7 AC A 110.5 120 45 28 - 2.09
361245 400 52 AlFe Cu 30 28.2 - 29.3 AC A 114 100 52 31 - 2.16
361245.1 400 52 AlFe Al 30 28.2 - 29.7 A FH 114 100 52 31 - 1.58
361267 400 60 AlFe Cu 30 35.5 - 36.7 AC A 118 110 60 38 - 2.7
361319.1 400 36 AlFe Cu 36 18.7 - 19.7 AC A 112.5 80 36 23 20 2.2
361325 400 36 AlFe Cu 36 20.5 - 21.8 AC A 112.5 80 36 23 - 2.16
361336 400 45 AlFe Cu 36 25.4 - 26.7 AC A 112.5 120 45 28 - 2.5
361346 400 52 AlFe Cu 36 28.2 - 29.3 AC A 116 100 52 31 - 2.56
361368 400 60 AlFe Cu 36 35.5 - 36.7 AC A 120 110 60 38 - 3.1
361746 400 36 AlFe Cu 40 18.7 - 19.7 AC A 112.5 80 36 23 20 2.15
361747 400 36 AlFe Cu 40 20.5 - 21.8 AC A 112.5 80 36 23 - 2.11
361748 400 45 AlFe Cu 40 25.4 - 26.7 AC A 112.5 120 45 28 - 2.5
361749 400 52 AlFe Cu 40 30.2 AC A 116 100 52 31 - 2.51
361749.1 400 52 AlFe Al 40 30.2 A A 116 100 52 31 - 1.85
361750 400 60 AlFe Cu 40 35.5 - 36.7 AC FH 120 110 60 38 - 3.05
361750.1 400 60 AlFe Al 40 35.5 - 36.7 A A 120 110 60 38 - 3.05
361751 400 52 AlFe Cu 50 30.2 AC A 116 114 52 31 - 2.8
361755 400 60 AlFe Cu 40 31.5 - 32.5 AC A 120 118 60 38 34 3.15



Clamp material
A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer
Jointing material
A - Stainless steel, FH - Steel hot dip galvanized
Note
* Al bolt





Type Identity number Typ čeľustí Počet zlisov
361215.1 36 AlFe 291410 2
361216 36 AlFe 291410 2
361219.1 36 AlFe 291410 2
361219.2 36 AlFe 291410 2
361225 36 AlFe 291410 2
361236 45 AlFe 291411 2
361245 52 AlFe 291413 4
361245.1 52 AlFe 291413 4
361267 60 AlFe 291415 3
361319.1 36 AlFe 291410 2
361325 36 AlFe 291410 2
361336 45 AlFe 291411 2
361346 52 AlFe 291413 4
361368 60 AlFe 291415 3
361746 36 AlFe 291410 2
361747 36 AlFe 291410 2
361748 45 AlFe 291411 2
361749 52 AlFe 291413 4
361749.1 52 AlFe 291413 4
361750 60 AlFe 291415 3
361750.1 60 AlFe 291415 3
361751 56 AlFe 291414 4
361755 60 AlFe 291415 3



Materiál svorky
A - Al zliatina, AC - Al zliatina s vrstvou CuSn 10
Spojovací materiál
A - Anticorový, FH - Ocel žiarovo pozinkovaná
