ELBA

Clamps straight, bolted and compressioned

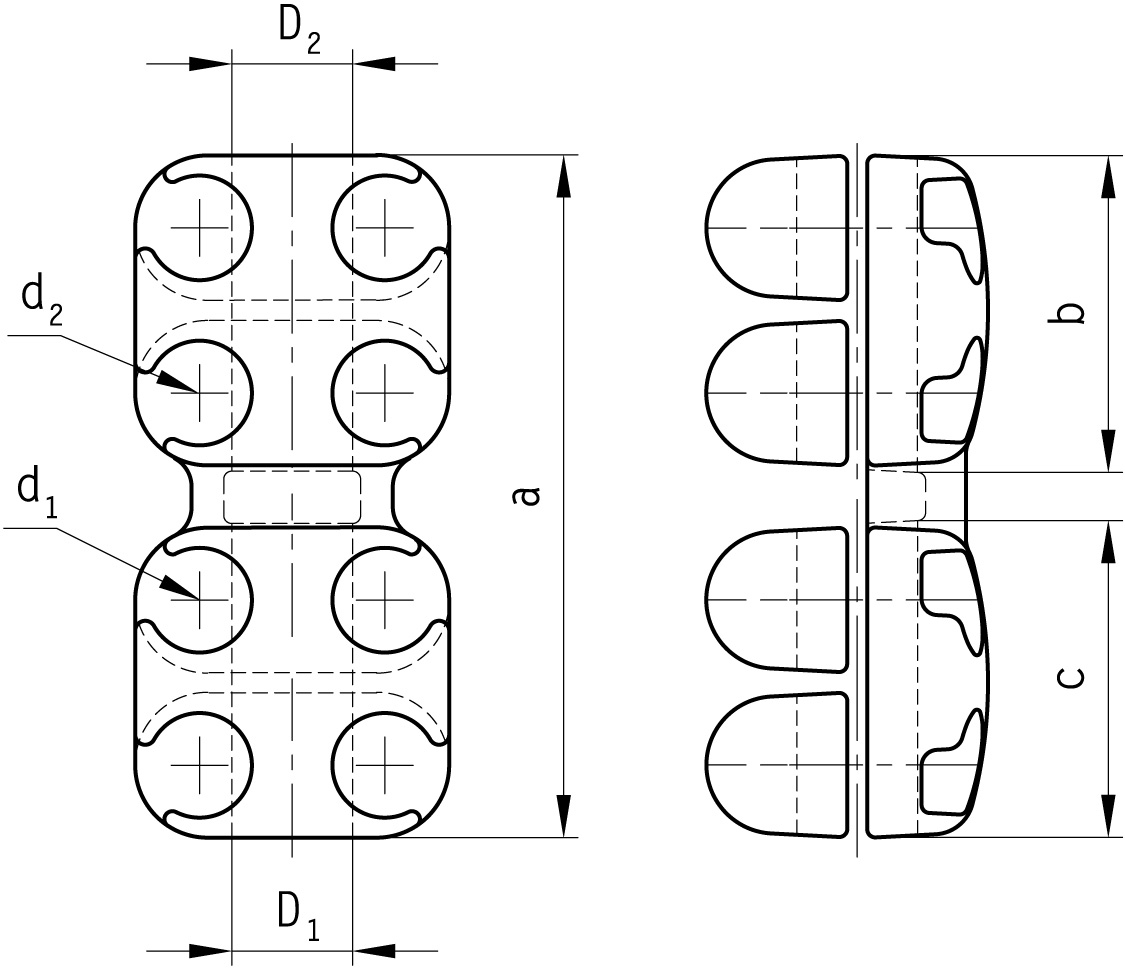

A 1.1 Straight Al (Cu) clamps for ACSR conductor and Al (Cu) bolt

Type	U [kV]	D1 [mm]	D2 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
300016	245	Cu 30	Cu 15.70	2/2	AC	A	171	78	78	M10	M10	2.3
300017	245	Cu 30	Cu 15.70	2/2	AC	A	171	78	78	M10	M10	6.7
303441	170	Cu 50	Cu 20.50	3/3	AC	A	255	118	118	M10	M10	7.4
321051	170	Cu 30	38.1	3/3	AC	A	250	118	118	M10	M10	3.5
321060.1	170	Al 30	36.9	3/3	A	A	250	118	118	M10	M10	3.1
321060.3	170	Al 36	26.4-26.8	3/3	A	A	255	118	118	M10	M10	4.0
321061.1	170	Cu 36	26.5	2/3	AC	A	217	118	78	M10	M10	2.5
321061.4	170	Al 40	26.0	2/3	A	A	217	118	78	M10	M10	2.55
321508	380	Al 50	36.8	2/2	A	FH	206	94	110	M12	M10	3.25
412567.1	170	Al 30	26.0	2/2	A	A	171	78	78	M10	M10	2.15
412567.2	170	Al 30	20.2	2/2	A	A	171	78	78	M10	M10	2.2
412567.3	170	Al 30	29.3	2/2	A	A	171	78	78	M10	M10	2.1
412567.4	170	Al 30	21.75-22.5	2/2	A	A	200	104	85	M12	M10	2.7
412567.6	170	Cu 30	26.4-26.8	2/2	AC	A	171	78	78	M10	M10	2.17
412567.8	170	Al 30	31.95	2/2	A	A	171	78	78	M10	M10	2.0
412573	170	Al 50	19.0-20.5	3/3	A	A	242	118	118	M10	M10	4.15



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.1 Straight Al (Cu) clamps for ACSR conductor and Al (Cu) bolt

Type	U [kV]	D1 [mm]	D2 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
300016	245	Cu 30	Cu 15.70	2/2	AC	A	171	78	78	M10	M10	2.3
300017	245	Cu 30	Cu 15.70	2/2	AC	A	171	78	78	M10	M10	6.7
303441	170	Cu 50	Cu 20.50	3/3	AC	A	255	118	118	M10	M10	7.4
321051	170	Cu 30	38.1	3/3	AC	A	250	118	118	M10	M10	3.5
321060.1	170	Al 30	36.9	3/3	A	A	250	118	118	M10	M10	3.1
321060.3	170	Al 36	26.4-26.8	3/3	A	A	255	118	118	M10	M10	4.0
321061.1	170	Cu 36	26.5	2/3	AC	A	217	118	78	M10	M10	2.5
321061.4	170	Al 40	26.0	2/3	A	A	217	118	78	M10	M10	2.55
321508	380	Al 50	36.8	2/2	A	FH	206	94	110	M12	M10	3.25
412567.1	170	Al 30	26.0	2/2	A	A	171	78	78	M10	M10	2.15
412567.2	170	Al 30	20.2	2/2	A	A	171	78	78	M10	M10	2.2
412567.3	170	Al 30	29.3	2/2	A	A	171	78	78	M10	M10	2.1
412567.4	170	Al 30	21.75-22.5	2/2	A	A	200	104	85	M12	M10	2.7
412567.6	170	Cu 30	26.4-26.8	2/2	AC	A	171	78	78	M10	M10	2.17
412567.8	170	Al 30	31.95	2/2	A	A	171	78	78	M10	M10	2.0
412573	170	Al 50	19.0-20.5	3/3	A	A	242	118	118	M10	M10	4.15



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.2 Straight Al (Cu) clamps for ACSR conductor and Al (Cu) bolt

Type	U [kV]	D1 [mm]	D2 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
320404	170	Al 30	35.80 - 36.50	2/3	A	A	210	118	78	M10	M10	3.25
320404.2	400	Al 30	26.40 - 26.80	2/3	A	A	219	118	78	M10	M10	3.4
320404.3	400	Cu 36	26.5	2/3	AC	A	210	118	78	M10	M10	3.15
320404.4	170	Cu 30	36.5	2/3	AC	A	210	118	78	M10	M10	2.45
320404.5	400	Al 40	35.80 - 36.50	2/3	A	A	219	118	78	M10	M10	3.3
320404.6	400	Al 30	29.1	2/3	A	A	219	118	78	M10	M10	3.4
320404.7	400	Al 30	21.9	2/3	A	A	219	118	78	M10	M10	3.5
320404.10	400	Al 40	29.1	2/3	A	A	219	118	78	M10	M10	3.35
320404.11	400	AL 30	19.5 - 20.5	2/3	A	A	219	118	78	M10	M10	3.50
321061.3	245	Cu 30	26.40 - 26.80	2/3	AC	A	217	118	78	M10	M10	2.7
412567.7	170	Al 30	27.9	2/2	A	A	171	78	78	M10	M10	2.0
412567.9	170	Al 30	32.56	2/2	A	A	171	78	78	M10	M10	2.0
412575.1	380	Cu 50	Cu 22.50	2/2	AC	A	175	78	78	M10	M10	7.7
412575.3	245	Cu 30	Cu 12.00	2/2	AC	A	175	78	82	M10	M10	6.2
412578	245	Al 30	26.5	3/3	A	A	257	121	121	M10	M10	2.56
412578.1	245	Cu 30	26.40 - 26.80	3/3	AC	A	257	121	121	M10	M10	2.6
412578.2	400	Al 30	22.5	3/3	A	A	219	118	78	M10	M10	3.2



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.3 Straight Al (Cu) Clamps for ACSR conductor and Al (Cu) bolt

Type	U [kV]	D1 [mm]	D2 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
300040.1	170	Cu 42	26.0	2/2	AC	A	171	78	78	M10	M10	6.4
320400	170	Al 40	34.0	3/3	A	A	250	118	118	M10	M10	3.7
320401	170	Al 40	34.0	2/3	A	A	210	118	78	M10	M10	3.2
320402	170	Cu 40	36.8	2/3	AC	A	242	127	118	M12	M10	3.7
320402.1	170	Cu 40	32.6	2/3	AC	A	242	127	115	M12	M10	4.05
320402.2	170	Cu 40	29.1	2/3	AC	A	242	127	115	M12	M10	4.15
320402.4	400	Cu 40	Cu 17.5	2/3	AC	A	242	127	115	M12	M10	4.3
320402.10	170	Cu 30	22.5	2/3	AC	A	242	127	115	M12	M10	4.1
320402.11	170	Cu 36	19.5 - 20.5	2/3	AC	A	242	127	115	M12	M10	3.88
320402.12	170	Al 40	Cu 35	2/3	AC	A	242	127	115	M12	M10	3.60
320403.1	170	Al 40	26.0	2/2	A	A	171	78	78	M10	M10	2.2
320405	170	Cu 50	32.6	2/3	AC	A	242	127	115	M12	M10	3.95
320405.1	170	Al 50	36.2	2/3	A	A	242	127	115	M12	M10	3.95
320405.7	400	Cu 53	Cu 23.0	2/3	AC	A	242	127	115	M12	M10	4.05
320406	170	Al 40	Cu 12.0	2/3	AC	A	242	127	115	M12	M10	4.40
320407	170	Al 50	Cu 12.0	2/3	AC	A	242	127	115	M12	M10	4.35



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.4 Straight Al clamps for Cu (Al) bolt and ACSR conductor

Type	U [kV]	D1 [mm]	D2 [mm]	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
321239	400	Cu 30	30.2	AC	A	201	114	75	M10	M12	3.1
321239.1	400	Cu 30	29.1	AC	A	201	114	75	M10	M12	2.9
321240	400	Cu 30	21.9	AC	A	201	114	75	M10	M12	2.85
412556	170	Al 50	27.3	A	A	235	104	127	M12	M10	3.03
412557	170	Cu 50	43.9	AC	A	245	117	112	M12	M12	3.45
412558	170	Cu 40	34.50 - 36.50	AC	FH	210	117	85	M12	M12	2.72
412558.1	170	Cu 40	43.9	AC	A	210	112	85	M12	M12	2.57
412559	170	Cu 40	26.39 - 28.00	AC	FH	200	104	85	M12	M10	2.43
412559.1	170	Cu 40	27.3	AC	A	200	104	85	M12	M10	2.43
412559.2	170	Al 40	29.0-30.0	A	A	200	104	85	M12	M10	2.33
412559.3	170	Cu 40	21.9	AC	A	200	104	85	M12	M10	2.5
412559.4	170	Cu 40	27.9	AC	A	200	104	85	M12	M10	2.32
412559.11	170	Cu 34	35.8 - 36.5	AC	A	200	104	85	M12	M10	2.4
412559.12	170	Cu 40	28.0 - 29.0	AC	A	200	104	85	M12	M10	2.56
412576	170	Cu 30	21.9	AC	A	200	104	85	M12	M10	2.7
412577	170	Cu 30	26.6	AC	A	200	104	85	M12	M10	2.65
414206	170	Cu 50	27.3	AC	A	235	104	127	M12	M10	3.09



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.5 Straight Al clamps for Cu (Al) bolt and ACSR conductor

Type	U [kV]	D1 [mm]	D2 [mm]	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
412559.5	170	Cu 40	30.6	AC	A	200	104	85	M12	M10	2.3
412559.6	170	Cu 40	21.75	AC	A	200	104	85	M12	M10	2.5
412559.7	170	Al 48	29.3	A	A	200	104	85	M12	M10	2.2
412559.8	170	Cu 40	19.0 - 20.5	AC	A	200	104	85	M12	M10	2.5
412576.1	170	Cu 30	18.8	AC	A	200	104	85	M12	M10	2.73
412576.2	170	Fe 30	18.8	A	A	200	104	85	M12	M10	2.73
412576.3	170	Cu 30	21.6	AC	A	200	104	85	M12	M10	2.7
412576.4	170	Fe 30	21.6	A	A	200	104	85	M12	M10	2.7
412576.5	170	Cu 30	27.9	AC	A	200	104	85	M12	M10	2.63
412576.6	170	Cu 30	30.9	AC	A	200	104	85	M12	M10	2.59
412576.7	170	Cu 12	24.0	AC	A	200	104	85	M12	M10	2.75
412576.8	170	Fe 30	24.5	A	A	200	104	85	M12	M10	2.68
412576.9	170	Cu 30	24.5	AC	A	200	104	85	M12	M10	2.68
412576.11	170	Cu 30	Cu 17.50	AC	A	200	104	85	M12	M10	2.48
412576.12	170	Cu 27	27.0	AC	A	200	104	85	M12	M10	2.65
412576.13	170	Cu 30	Cu 23.0	AC	A	200	104	85	M12	M10	2.6
412576.15	170	Cu 36	20.5 - 21.5	AC	A	200	104	85	M12	M10	2.6
412576.17	170	Cu 20	10.5 - 12.0	AC	A	200	104	85	M12	M10	2.78
412576.21	170	Al 22	26.4 - 26.8	A	A	200	104	85	M12	M10	2.6
412579	170	Cu 40	28.9	AC	A	200	104	85	M12	M10	2.4



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.6 Straight Al clamps compressioned for ACSR conductor and Cu (Al) bolt

Type	U [kV]	D1 [mm]	D2 [mm]	Clamp Material	Jointing Material	Identity number	Typ čeľustí	Poč. zlisov	a [mm]	b [mm]	c [mm]	c1 [mm]	d1 [mm]	Weight [kg]
360219	400	Cu 30	18.70 - 19.70	AC	A	36 AlFe	291410	2	208	90	36	20	M10	1.56
360219.1	400	Al 30	19.1	A	A	36 AlFe	291410	2	208	85	36	20	M10	1.05
360225	400	Cu 30	20.50 - 22.50	AC	A	36 AlFe	291410	2	208	90	36	23	M10	1.51
360236	400	Cu 30	25.40 - 27.50	AC	A	45 AlFe	291411	2	208	90	45	28	M10	1.74
360236.1	400	Al 30	25.40 - 27.00	A	A	45 AlFe	291411	2	208	85	45	28	M10	1.74
360246	400	Cu 30	28.50 - 30.50	AC	A	52 AlFe	291413	4	208	90	52	31	M10	1.95
360246.1	400	Al 30	28.50 - 30.50	A	FH	52 AlFe	291413	4	208	85	52	31	M10	1.26
360268	400	Cu 30	35.50 - 37.50	AC	A	60 AlFe	291415	3	245	117	60	38	M10	2.65
360319	400	Cu 36	18.70 - 19.70	AC	A	36 AlFe	291410	2	210	90	36	20	M10	1.8
360325	400	Cu 36	20.50 - 22.50	AC	A	36 AlFe	291410	2	210	90	36	23	M10	1.75
360336	400	Cu 36	25.40 - 27.50	AC	A	45 AlFe	291411	2	210	90	45	28	M10	2.2
360336.1	400	Al 36	25.40 - 27.50	A	A	45 AlFe	291411	2	210	90	45	28	M10	1.36
360346	400	Cu 36	28.50 - 30.50	AC	A	52 AlFe	291413	4	210	90	52	31	M10	2.45
360369	400	Cu 36	35.50 - 37.50	AC	A	60 AlFe	291415	3	235	117	60	38	M10	2.9
360746	400	Cu 40	18.70 - 19.70	AC	A	36 AlFe	291410	2	210	90	36	20	M10	1.76



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized

Note

Assembly tools to be found on page A 4.5





A 1.7 Straight Al clamps compressioned for ACSR conductor and Cu (Al) bolt

Type	U [kV]	D1 [mm]	D2 [mm]	Clamp Material	Jointing Material	Identity number	Typ čeľustí	Poč. zlisov	a [mm]	b [mm]	c [mm]	c1 [mm]	d1 [mm]	Weight [kg]
360747	400	Cu 40	20.50 - 22.50	AC	A	36 AlFe	291410	2	210	90	36	23	M10	1.71
360748	400	Cu 40	25.40 - 27.50	AC	A	45 AlFe	291411	2	210	90	45	28	M10	2.16
360749	400	Cu 40	28.50 - 30.50	AC	A	52 AlFe	291413	4	210	90	52	31	M10	2.41
360750	400	Cu 40	35.50 - 37.50	AC	A	60 AlFe	291415	3	235	117	60	38	M10	2.86
360751	400	Cu 50	30.2	AC	A	56 AlFe	291414	4	235	90	56	31	M10	2.5
360846	400	Al 40	18.70 - 19.70	A	A	36 AlFe	291410	2	210	90	36	20	M10	1.59
360847	400	Al 40	20.50 - 22.50	A	A	36 AlFe	291410	2	210	90	36	23	M10	1.71
360848	400	Al 40	25.40 - 27.50	A	A	45 AlFe	291411	2	210	90	45	28	M10	2.16
360849	400	Al 40	28.50 - 30.50	A	A	52 AlFe	291413	4	210	90	52	31	M10	2.41
360850	400	Al 40	35.50 - 37.50	A	A	60 AlFe	291415	3	235	117	60	38	M10	2.86



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized

Note

Assembly tools to be found on page A 4.5





A 1.8 Straight Al clamps for Cu (Al) bolt and Al tube

Type	U [kV]	D1 [mm]	D2 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
330007.2	400	Al 30	70	2/2	A	A	193	91	79	M10	M10	2.7
330007.4	400	Cu 30	40	2/2	AC	A	193	91	79	M10	M12	3.15
330007.5	400	Al 36	70	2/2	A	A	193	91	79	M10	M12	2.65
330007.6	400	Cu 40	70	2/2	AC	A	193	91	79	M10	M12	2.44
330007.7	400	Al 30	40	2/2	A	A	193	91	79	M10	M12	3.37
330008	400	Cu 36	80	2/2	AC	A	193	91	79	M10	M12	2.35



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





A 1.8 Straight Al clamps for Cu (Al) bolt and Al tube

Type	U [kV]	D1 [mm]	D2 [mm]	Caps	Clamp Material	Jointing Material	a [mm]	b [mm]	c [mm]	d1 [mm]	d2 [mm]	Weight [kg]
330083	161	Al 40	70	3/2	A	A	240	95	118	M10	M12	4.0
412571.3	400	Al 30	100	2/1	A	A	235	120	94	M10	M12	6.48
412571.4	400	Cu 40	100	2/1	AC	A	235	120	94	M10	M12	6.43
412571.5	400	Cu 50	100	2/1	AC	A	235	120	94	M10	M12	6.43
412571.8	400	Cu 36	100	2/1	AC	A	235	120	94	M10	M12	6.4
412571.13	400	Cu 30	100	2/1	AC	A	235	120	94	M10	M12	6.45



Clamp material

A - Al alloy, C - Copper E-Cu, AC - Al alloy with CuSn 10 layer

Jointing material

A - Stainless steel, FH - Steel hot dip galvanized





• • Catalogues
    • Fittings for overhead transmission lines
    • Substations accessories
      • A Clamps for bolt
        • A 1 Clamps straight, bolted and compressioned
        • A 2 Clamps straight and bolted
        • A 3 45° Clamps bolted
        • A 4 90° Clamps straight bolted and compressioned
        • A 5 T-clamps bolted
        • A 6 Clamps straight bolted T - Connectors bolted
        • A 7 Flat terminals bolted
        • A 8 Expanzion couplers
      • B Clamps for bases
      • C Flat clamps
      • D Branching clamps
      • E Earthing points - spacers
      • F Fixing components
      • G Various equipment
      • M Montážny predpis na montáž svoriek pre rozvodne
